Gear Systems Power-Packer air over hydraulic powered landing gear for trailers easily levels the trailer with the dock for quick and simple unloading or loading. In partnership with Aerotek Aviation Engineering Ltd AAE of the UK SIKA has recently established a joint venture company Aerotek Sika which is a one-stop shop for aircraft landing gear hydraulic LRUsassemblies and actuators. Particulars of any gear system are found in the aircraft maintenance manual. The Airbus A330 hydraulic system is comprised of three independent systems that operate continually to power the flight controls and various systems including the landing gear brakes nose wheel steering and the emergency electrical generator EMER GEN. There are numerous hydraulic landing gear retraction system designs. The nose gear is also fitted with hydraulically operated steering system. Landing gear system is isolated from the remainder of hydraulic system.

Landing gear actuation on current aircraft normally has several hydraulic power sources.

We provide sustainable solutions that help our customers effectively manage electrical hydraulic and mechanical power more safely more efficiently and more reliably. Landing Gear Hydraulics. If playback doesnt begin shortly try restarting. Larger aircraft use these hydraulic systems on flight controls such as flaps ailerons and also in spoilers and thrust reversers. Some aircraft are also supplied with a hand-operated pump which can be used in an emergency or when the aircraft is on the ground and the engine is not operating. In the Piper system the switch controls a reversible electric motor.

Aircraft Landing Gear Retraction

Landing gear hydraulic system. In the event of a hydraulic system failure the landing gear can be lowered by gravity. Landing gear actuation on current aircraft normally has several hydraulic power sources. Doors enclose the landing gear bays.

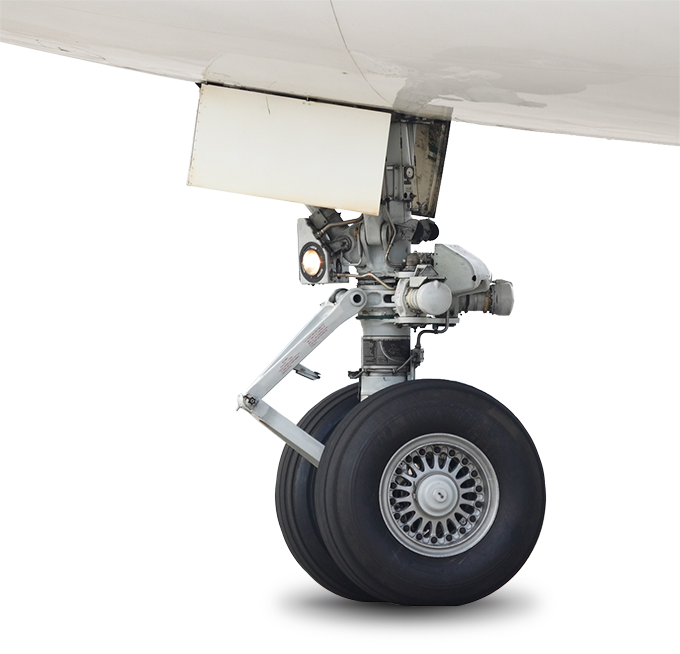

Landing Gear Hydraulics. The landing gear system is similar to a quarter-car arrangement in an automobile and consists of 3 main com ponents as in mass spring. Customize our hydraulic landing gear for your unique need and your employees or customers can load unload and move trailers with ease and efficiency improving safety productivity and job satisfaction.

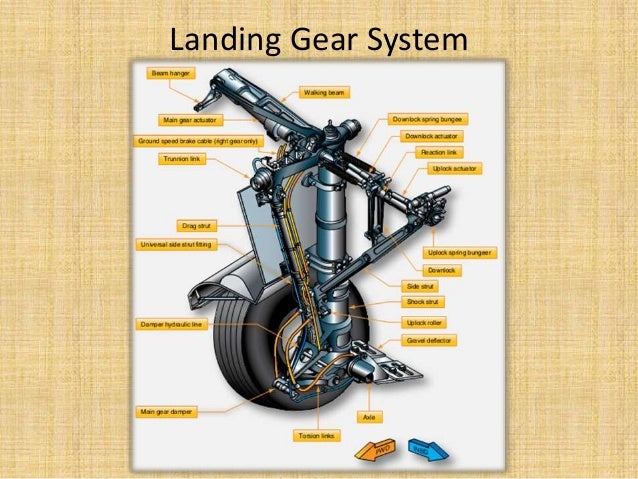

Particulars of any gear system are found in the aircraft maintenance manual. The main gear struts are of a trailing-link design. Its landing gear actuation is driven by two 270V DC driven EMP in normal operation and a RAT in emergency.

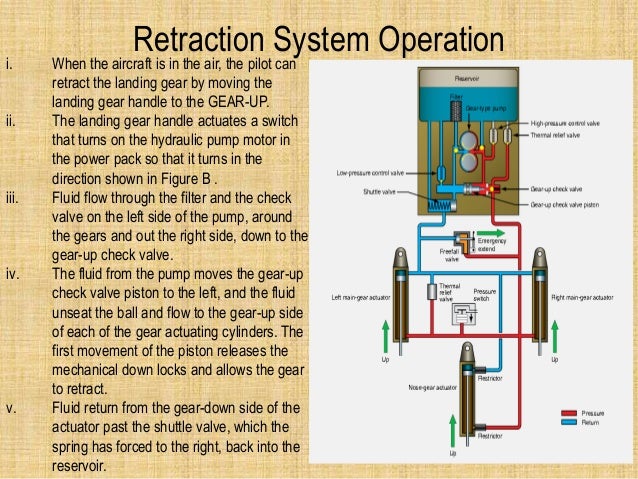

Landing gear doors open. The landing gear handle actuates a switch that turns on the hydraulic pump motor in the power pack so that it turns in the direction shown in Figure B. Landing gear system is isolated from the remainder of hydraulic system.

Typically the hydraulic systems in these aircraft drive not only the braking system but also flaps and landing gear retraction systems. Safran Landing Systems Local Electro-Hydraulic Generation is a complex autonomous hydraulic generation system that backs up the normal system in case of malfunction. It is supported on the inboard side by a side stay cum retraction jack.

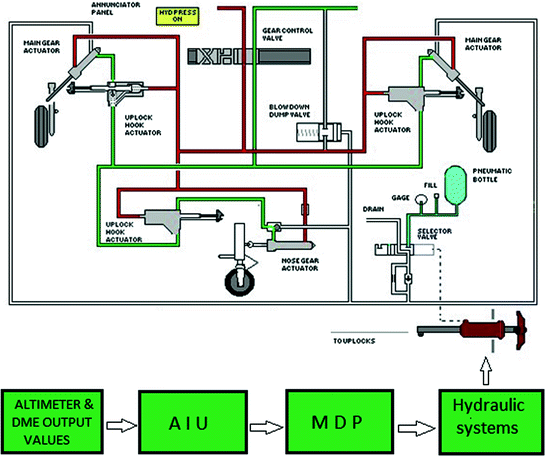

Pneudraulic pressure is routed to the OPEN side of the landing gear door actuators the UNLOCK side of the landing gear uplock actuators and the EXTEND side of the main landing gear sidebrace actuators and nose landing gear extendretract actuator. Priority valves are sometimes used instead of mechanically operated sequence valves. Each main gear wheel is equipped with three fusible plugs.

Greenfield facility within the 65 acre SIKA. Gear Systems Power-Packer air over hydraulic powered landing gear for trailers easily levels the trailer with the dock for quick and simple unloading or loading.
